VP2021KIT - ATEN - 4K Wireless Presentation Switch with Quad View Kit
Description:

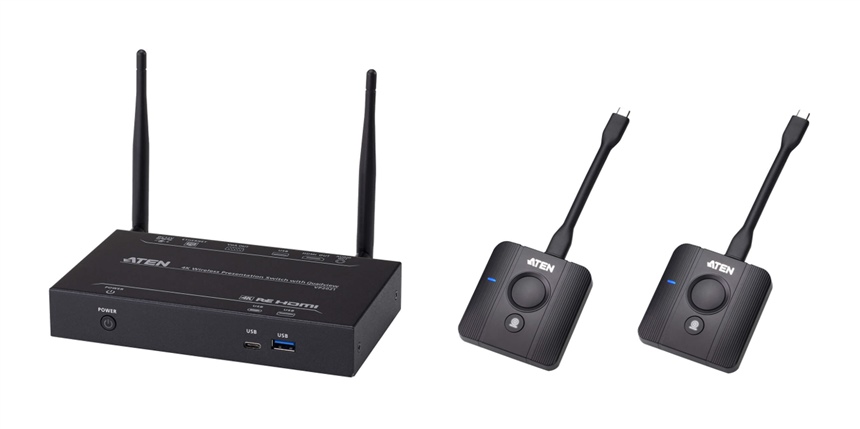

VP2021KIT - VP2021 Presentation Switch + VP201wireless Dongles (x2)

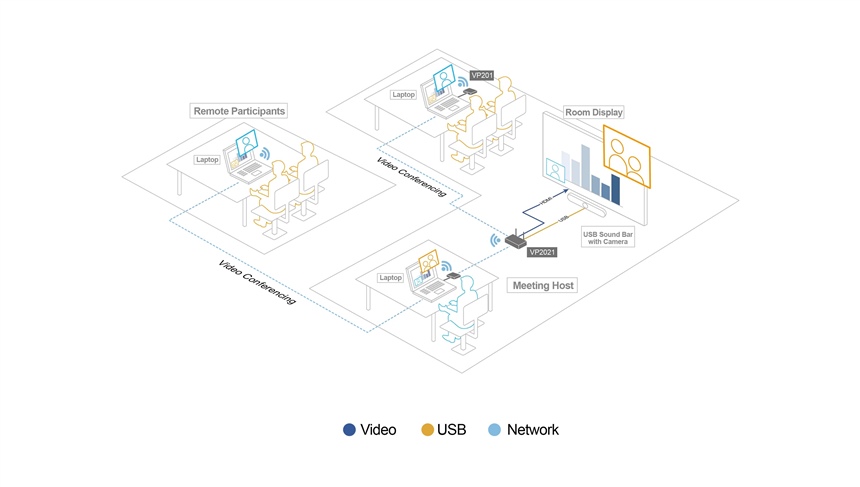

VP2021KIT contains everything you need to facilitate a wireless BYOM (Bring Your Own Meeting) conference, including 1 × VP2021 wireless presentation switch and 2 × VP201 USB-C wireless dongles. The VP2021 boasts versatile functionalities that foster meeting engagement and momentum, including 4K content transmission, multi-view presentation layouts (full screen / side-by-side / quad view), various collaboration tools (annotation / whiteboard / screen capture), and the support for Moderation Mode and auto layout projection. Up to 8 × VP201s* can be paired with a VP2021 to let 8 individuals join the meeting wirelessly by simply plugging the dongle’s USB-C connector into their laptops or mobile devices and start sharing A/V content with one click on the button on the dongle.
Features:
• Each kit includes 1 × VP2021 wireless presentation switch and 2 × VP201 USB-C wireless dongles
• 1 × VP2021 can pair with up to 8 × VP201s – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices
Note: 2 × VP201s are included in this kit. The additional 6 × VP201s must be purchased separately.
• Wireless A/V content casting and power supply via VP201’s USB-C connector with just one click
• USB touchback – ensures seamless presentation flow directly from the in-room eWhiteboard or content interaction from users' USB devices
• BYOM (Bring Your Own Meeting) – host / join a video conference using your preferred tool (Microsoft Teams / Google Meet / Zoom) directly from your laptop
• Supports in-room AV equipment ranging from cameras, microphones to speakers
• Multi-view – up to 4 sources can be shared wirelessly in full screen / side-by-side / quad view layout
• Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
• Moderation Mode – the moderator can manage and control attendees’ connection status and the AV content being displayed
• Multiple collaboration tools – annotation, whiteboard on screen, and screen capture
• Simultaneously outputs content at up to 4K to an HDMI display and a VGA display
• HDMI audio de-embedding – easy integration with audio amplifiers or mixing systems
• Power over Ethernet (PoE) – eliminates the need for an additional power adapter
• Supports up to 20 attendees to join the meeting via LAN in the same network environment
• OS-independent – works on Windows / macOS / Linux
• Plug-and-play with no need to install software / drivers
Specification:
1 x VP2021 4K Wireless Presentation Switch with Quad View
2 x VP201 PresentON® Wireless Dongle for Conferences
Package Contents
1 x VP2021 4K Wireless Presentation Switch with Quad View
2 x VP201 PresentON® Wireless Dongle for Conferences
1 x Power Adapter and Power Cord
2 x Wifi Antenna
1 x User Instructions
Function VP201 VP2021
Video Input
Interfaces 1 x USB-C N/A
Max. Distance 12cm cable length and is fixed to the unit N/A
Video Output
Interfaces N/A 1 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female
Max. Distance N/A HDMI: Up to 5 m
VGA: Up to 15 m
Video
Max. Data Rate Average ~ 12 Mbps Average ~ 12 Mbps
Max. Resolution Up to 1080p @ 60 Hz HDMI: Up to 4K @ 30 Hz
VGA: Up to 1080p
Audio
Input 1 x USB-C N/A
Output N/A 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Black)
Wireless
Authentication Protocol WPA2-PSK using the ATEN PresentOn solution in network integration mode AP mode: WPA2-PSK
Station mode: WEP, WPA, WPA2, 802.1x EAP
Wireless Transmission Protocol IEEE 802.11 a/g/n/ac IEEE 802.11 ac
Frequency Band Switchable dual band 2.4 GHz and 5 GHz (DFS channels not supported) Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
Reach Up to 10 m* (Line of Sight) Up to 20 m* (Line of Sight)
Connectors
Power 1 x USB-C male 1 x DC Jack (Black)
Console Ports 1 x USB-C male USB 3.0: 1 x USB Type-A Female (Blue)
USB 2.0: 1 x USB Type-A Female
USB-C: 1 x USB-C Female
RJ-45 10/100/1000 Ports N/A 1 x RJ-45 Ethernet port (Support POE)
Switches
Power N/A 1 x Pushbutton (LED: Blue)
Function Key 1 x Function button to connect video conferencing device N/A
Mode Switch 1 x Share button to control screen sharing N/A
Power Consumption DC5V:1.37W DC12V:12W
Environmental
Operating Temperature 0-40°C 0-40°C
Storage Temperature -10 - 70°C -20 - 60°C
Humidity 20 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic Metal
Weight 0.09 kg ( 0.2 lb ) 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) 6.70 x 6.90 x 1.50 cm
(2.64 x 2.72 x 0.59 in.) 17.00 x 10.40 x 2.83 cm
(6.69 x 4.09 x 1.11 in.)
Note * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances. * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
