PX4-5498R-E8 - Raritan - Horizontal 2U PX4 PDU - IP Outlet Monitoring & Switching, C13 (x18), Cx (x6) Outlets, IEC60309 32A Input (200-240V), 32A
Description:

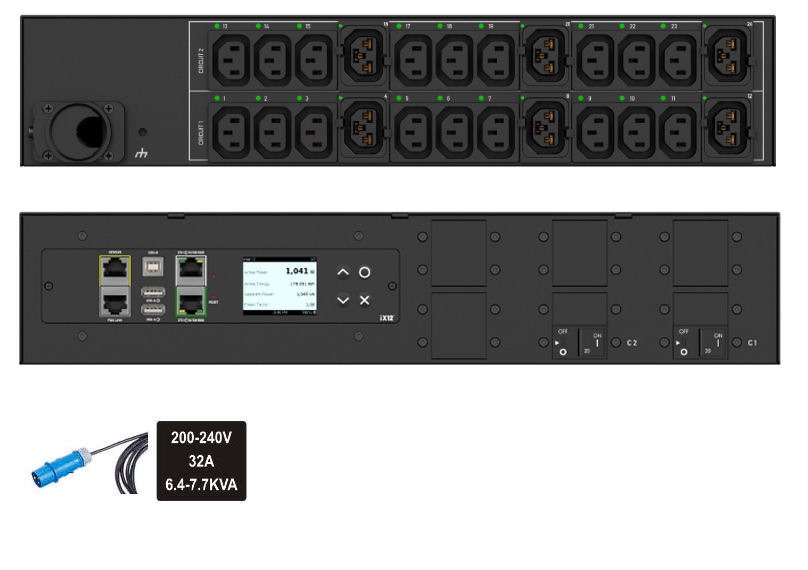

General Guidance Image
The new PX4 builds the Xerus™ Technology Platform by adding industry-proven outlet technology and a set of ground-breaking intelligence features. This combination delivers unsurpassed outlet and power density, flexibility, reliability, security, and accurate data collection.
Outlet Level Monitoring & Outlet Level Switching
Features:
Energy Metering -
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy -
Class 0.5 meter
Metering per input line
Yes
Metering per Branch Circuit Breaker
Yes
Metering per Output Receptacle
Yes
Remote Outlet Switching
Yes
Power Quality Monitoring-
Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor
Outlet Power Distribution
Alternating Branch
Replaceable Controller
Yes, hot-swappable
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.
View all sensors.
PDU Linking
Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
Cascading
Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
Linking
Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Remote Management
HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API
Onboard Display
Colour, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.
Specification:
IND309 - 32A Input (Single Phase)
Input
Input Plug
IEC 230V/32A 2P+PE 6Hr
Nominal Voltage
230V
Maximum Input Current
32A
Rated Input Current
32A
Power Capacity
7.7kVA
Cord Length
10ft/3m
Output
Nominal Voltage
230V
Receptacles (Output Connections)
(18) C13, (6) Cx
Overload Protection
2
Physical
Dimensions (WxDxH)
440mm x 293mm x 88mm
Unit Weight
10 lbs
Shipping Weight
20.08 lbs
Shipping Dimensions (HxDxW)
554 x 454 x 264 mm
Mounting
RACK-KIT-PX-2U
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-10000ft
