PDU-V-C1320- C194-C20 24 Way Vertical 20xC13 & 4xC19 Socket PDU with 3Mtr 16A
C20 Feed Plug
Description:

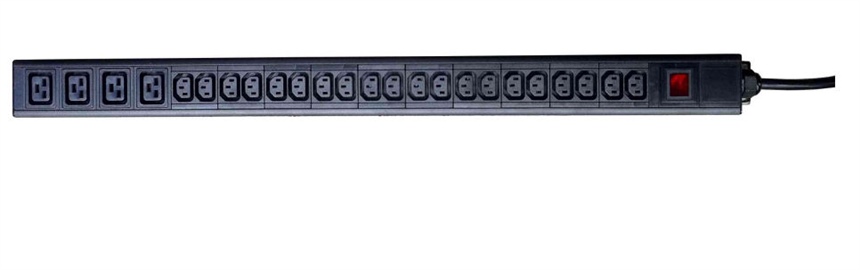

General picture of style, actual item with also have C19 outlets
Vertical IEC PDUs, designed to fit into server and data cabinets
Vertical IEC PDUs are widely used to accommodate cabinets where a higher number of IEC sockets are needed, rack space is also at a premium. Being mounted at the back of the cabinet means that the PDU maintains a ‘0U’ profile, allowing the rest of the cabinet to be populated with other hardware equipment.
All PDU's are built using a tough aluminium extrusion, and come with a 3m power lead as per stated feed connector :
X Plug connector
Vertical IEC PDUs are widely used to accommodate cabinets where a higher number of IEC sockets are needed, but rack space is also at a premium. Being mounted at the back of the cabinet means that the PDU maintains a ‘0U’ profile, allowing the rest of the cabinet to be populated with critical hardware.
Features:
- Vertical Zero U PDU Rack Mountable
- The cable on the horizontal PDUs exits from end cap of unit, allowing easier mounting of the PDU
- Unit Switched Bar Supply. The shrouded switch of the PDU is protected by a switch cover, preventing accidental switching off of the PDU
- 10A IEC C13 60320(320) sockets
- 16A IEC C19 sockets
- Tough aluminium extrusion
- Shrouded switch and switch cover
- 3m 1.5mm cable
- Versions available with different Power inputs version : C20, 16A &32A IND309 commando options.
Specification:
Vertical PDU with C13 outlets and 32A PLUG feed connector
Weight of PDU
1.15kg – 1.5kg
Net length of PDU
PDU-V-C13-6; : 490mm
PDU-V-C13-8; : 490mm
PDU-V-C13-10; 490mm
PDU-V-C13-12: 490mm
PDU-V-C13-16: 590mm
PDU-V-C13-20: 700mm
PDU-V-C13-24: 810mm
Net width of PDU - 60mm
Net depth of PDU-45mm
Shipping length of PDU - 520mm – 825mm
Shipping Width of PDU - 32mm
Shipping Depth of PDU - 75mm
Shipping Weight of PDU - 1.3kg – 1.85kg
PDU max power - 3250W
Output rating C13: 10A
Output rating C19: 16A
Overall rating - 32A
Input Frequency - 50/60Hz
Acceptable Input Voltage 250VAC
