SML-KIT-SCO-60-2D - Raritan SmartLock BASIC Kit. 2 x Intelligent Door Handles & Sensor Module Kit - x2 active dry contacts - 12V Power
Description:
Single Handle - Kit includes 2x Handles
Basic SmartLock Solution
EASY INTRODUCTION TO RACK ACCESS CONTROL
2 Door Basic Kit for one rack with sensor / door module and cables.
The Raritan SSmartLock Basic solution provides the best value for entry-level access and
control requirements. The standard lock and optional modular card reader makes
this solution ideal for data centers with a smaller footprint.
- Supports the basic needs for rack access control
- Perfect for smaller number of racks to protect
-Remote management of access permissions with Sunbird’s Power IQ
DCIM monitoring software
- Meets budget requirements for edge computing and remote/distributed racks
Features:
ƒ Supports the basic needs for rack access control
ƒ Perfect for smaller number of racks to protect
ƒ Remote management of access permissions with Sunbird’s Power IQ
DCIM monitoring software
ƒ Meets budget requirements for edge computing and remote/distributed racks
Specification:

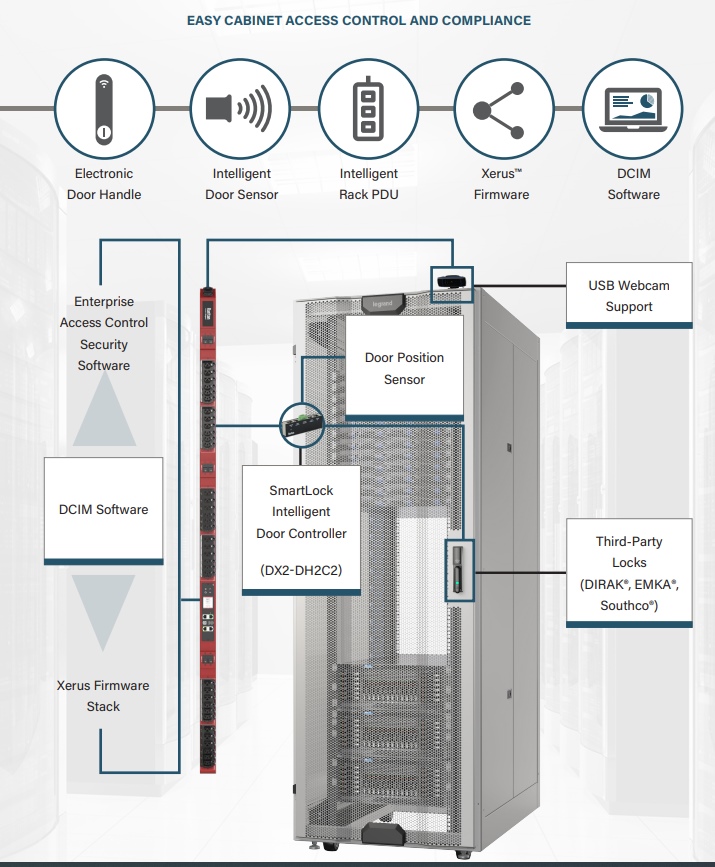

Raritan SML-KIT-SCO SETUP PLAN
PDU, contact sensors and cameras not included
SML-KIT-SCO-60-2D

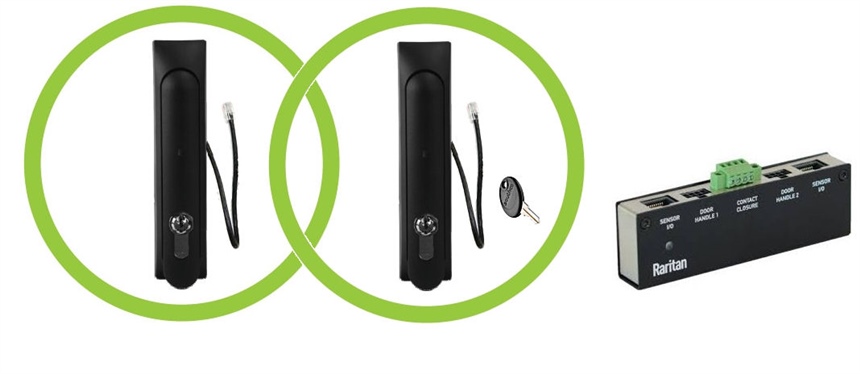

Raritan Door Access Kit including 2 x (SCO ) Southco SML-SCO-H3EM-60 Electronic Swinghandle - High security DIN lock - (1) DX2-DH2C2 Intelligent Door Sensor - Two active dry contacts powered by 12V to support 3rd party door locks. Two digital Normally Closed (NC) or Normally Open (NO) contact closures that require customer-provided NC or NO switches, e.g. door open/closed, smoke present/absent, etc. Each of the two ports (channels) can be independently set to NC or NO, factory default is NC. Dual RJ-45 connectors- (2) 4 meter lock connector cables included.
• Handles made for standard cut out 25mm x 150 mm
See templates.
PLEASE NOTE:
Additional parts may still be required to fit the handles to some racks. This is dependant on the door lock cut out which although these are made to the most common some racks may vary and require a template or other adaptor fittings.
Advice is available to deal with any different or difficult rack doors including mechanical rod locking parts. Not Included POA
