RT-T1900-LED - Raritan KVM Drawer 19-inch flat Panel display, keyboard and touchpad pointing device. Plain PS2 Raritan KVM Drawer
Description:
Raritan KVM Drawer T1900
T1900 KVM Drawer with 19” LCD Panel, keyboard and touchpad; 1U rack mount form factor. The T1900 KVM drawer is Raritan's new 1U rack console with a 19-inch LCD flat panel display, available in multi-language heavy duty keyboard support (English, French, German, Italian, Spanish, Russian, Turkish, Japanese, Traditional Chinese, Korean) and touchpad pointing device. It provides a high-quality TFT display with a maximum resolution of 1280 x 1024.
Manage the setup, administration and maintenance of rack mount servers in data centers, server rooms and other space-critical industrial environments.
The Raritan KVM Drawer solution is an integrated, 1U device that manages servers in data centers, server rooms and other space critical environments - directly from the racks in which they are installed.
Support Multiple Data Center Configurations
_ T1900 - KVM Drawer with a 19-inch LCD flat panel display, keyboard and touchpad pointing device.
The T1900 integrates seamlessly with other Raritan solutions, offering powerful access to servers and other network devices in the data center.
Industrial Design and Quality
_ Designed for space-critical server environments.
- High quality A+ grade 19" LCD, TFT display with high resolution support
_ Micro switch for screen auto power off
_ Heavy duty keyboard and touchpad
_ King slide railways with fixed position feature to prevent unwanted
drawer movement

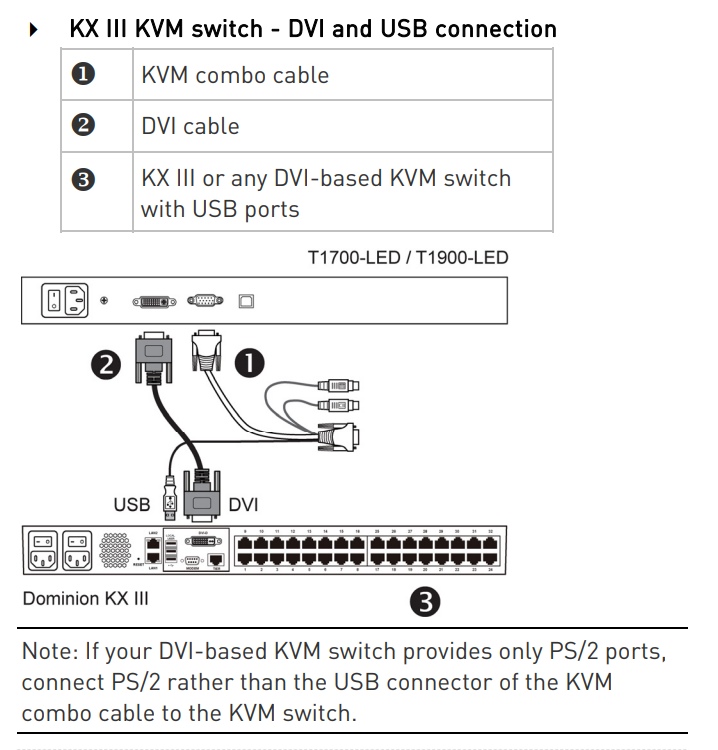

_ 3-in-1 KVM cable supports PS/2 and USB connections
Features:
Space Saving and Efficient
- Space saving 1U design takes up to 85% less space than a full size keyboard, monitor and mouse
- Low power consumption model draws less power than CRT monitors, leaving more power for servers and storage
- Total cable clutter minimized with daisy chain network
- OSD and front panel controls allow for easy switching and adjustments
Flexible Configurations
- Compatible with any KVM switch
- Multi-language support for English, French, German,Italian, Japanese, Korean, Russian,
Spanish, Traditional Chinese and Turkish
- Modular design basis – LCD, keyboard and mouse
- Built-in auto-switching AC power supply eliminates need for external power bricks
- Supports Sun® and Windows® based servers
Applications
* Manage setup, administration and maintenance of rack-mounted servers in data centers, server rooms and other space-critical industrial environments
Specification:
Raritan's T1700 & T1900 Models
Model T1900
Physical
Form Factor 1U Rack mount, 19-inch, Can be mounted in 750mm and 900mm cabinets
Display Type Grade A+ LCD, TFT panel display
Display Size 19-inch diagonal
Dimensions - (WxDxH) x mm x xmm x x mm; y”x y”x y”
Contrast Ratio 700:1 (typical)
Viewing Angle
Horizontal: 75/75 degrees from center Vertical: 75 (Upper) / 60 (Lower) degrees from center
Display Colors 16.2 million
Video
Maximum Resolution SXGA (1280x1024)
Brightness 300 nit
Keyboard Notebook style
Number of Keys 104/106 keys with number pad
Pointing Device Integrated touchpad with three-button control
Colour Black
Cable Length: 5 meters (15 ft) Maximum Distance: 5 meters (15 ft)
Screen Controls Menu, auto adjustment, colour, brightness, contrast, phase, H/V position, pitch, zoom language, and OSD position
Environmental
Operating Temperature 0º to 50º C
Storage Temperature -5º to 60º C
Humidity 5~90% RH, non-condensing
Weight 16 kg (35 lbs)
Power AC, 110-240V , 50~60Hz, auto-switching
MTBF 30,000 hours
Agency Approvals FCC Conformity with Part 15, Subpart B, UL Listed, CE Conformity, RoHS
Warranty
Two years. In addition, Raritan offers two years extended warranty.
