ASP-001 - ADDER - ADDERLink INFINITY Manager (Adder AIM) Digital matrix solution (Now with AIM 6)
Description:

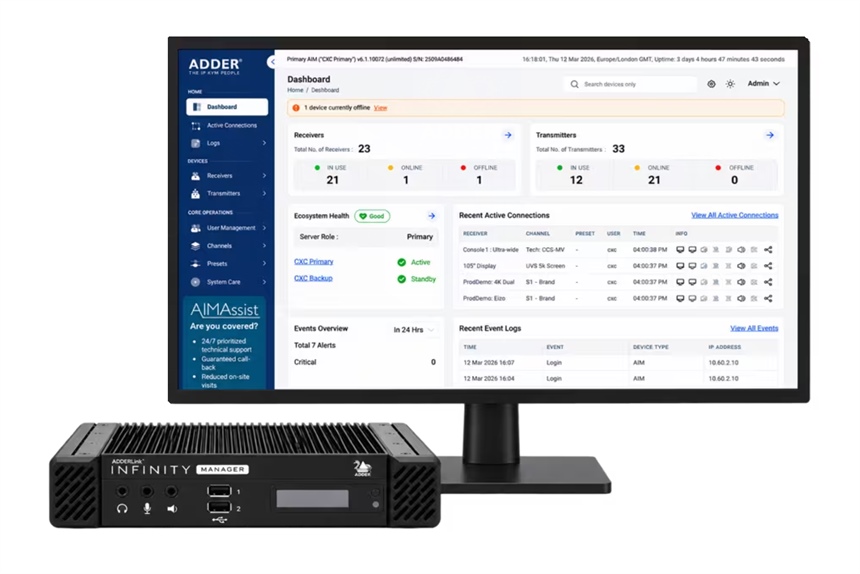

ADDERLink INFINITY Manager with the (AIM) 001 box
The ADDERLink INFINITY Manager (AIM) server is a control suite which transforms ADDERLink INFINITY (ALIF) extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co– operative sharing of computers and multicasting of video to any destination.
Now with AIM 6
The AIM 6 update adds an updated interface providing simplified access to critical system information, administrators can benefit from being able to identify and respond to issues more efficiently.
Features:
• Secure & resilient:** TLS/HTTPS, redundant AIM, and dual network interfaces for 24/7 reliability.
• User access & auditing:** Individual permissions, Active Directory/LDAP integration, login/device tracking and audit reports.
• Centralised management:** Web-based dashboard for real-time monitoring, configuration and device control.
• Presets & OSD:** Intuitive on-screen controls, favourites, hotkeys and one-click presets for video walls and multi-screen setups.
• Flexible connections:** View-only, shared, private or exclusive connection modes.
• Fast switching:** Sub-second video and USB switching between computers.
• Multicasting & USB sharing:** Distribute video to multiple receivers and allow shared USB control.
• Channels:** Combine video, audio and USB sources into a single virtual channel.
• Third-party integration:** Open API, SNMP v3 and NTP support.
• Backups & updates:** Automated backups and centralised firmware upgrades across hundreds of devices.
• Easy setup:** Zero-config networking simplifies device discovery, configuration and management.
Specification:
ADDERLink INFINITY Manager (AIM) Diagram
Physical Design
Robust metal construction
• (L)210mm/8.3” x (W)215mm/8.5” x (D)40mm/1.6”
• Weight: 1.8kg/4lbs
Power supply
• External power: 12VDC, 5A
• Typical power consumption: 20W
• BTU: 68.24BTU/hr
Environmental
Operating temperature
• 0 to 40ºC/32 to 104ºF
Storage temperature
• Storage temperature: 0 to 60ºC/32 to 140 ºF
• Altitude: < 2000m Humidity
• 10-90% (non-condensing)
Other
Mean Time Between Failure (MTBF)
• 77,500 hrs
• Telcordia SR332 Issue 4 March 2016 Calculated @55ºC
Ethernet
• 1GbE with 10/100/1000 support via 2x SFP and 1x 8p8c
Approvals
• CE, FCC
